Extract XML Documents from Relational Databases

Extracting XML documents from relational databases bridges the gap between structured, tabular data storage and the hierarchical, flexible nature of XML. This comprehensive guide combines conceptual insights with practical methods, offering an in-depth understanding of how to efficiently transform relational data into XML for diverse applications.

Introduction to Extracting

Relational databases store data in a structured format of rows and columns. While this format excels at operational tasks, XML offers distinct advantages for data exchange, hierarchical representation, and integration with other systems. Extracting XML documents allows you to:

- Share data via APIs or web services.
- Represent nested data relationships effectively.
- Migrate or integrate data across platforms.

While discussing these methods, it’s crucial to understand the corresponding skills like managing files properly. For instance, if you need to extract compressed files during data handling, consider this step-by-step guide on extracting tar.gz files in Linux.

Approaches to XML Extraction

Database Mapping

This approach maps relational database fields to XML elements. It dynamically converts SQL query results into XML documents, often using server-side web applications or specialized tools.

1. Concept: Relational data remains in the database while XML conversion occurs at runtime.
2. Tools: Many systems provide configuration files or graphical tools to define mappings.

Note:
Below is the Entity Relationship Shema of a University Database

Native XML Support

Some databases store data as XML natively, rather than converting it from relational structures. These systems serialize XML data into a clean format for storage and retrieval.

1. Concept: Data is stored and retrieved directly as XML documents.
2. Use Case: Best suited for applications with XML-centric workflows.

Practical Methods for XML Extraction

Method 1: SQL-Based Conversion

A. SQL Server – FOR XML Clause


					-- Convert a table to XML
SELECT * FROM Employees
FOR XML PATH('Employee'), ROOT('Employees');

Output:


					<Employees>
  <Employee>
    <ID>1</ID>
    <Name>John Doe</Name>
  </Employee>
</Employees>

Pros:
✅ Native SQL support
✅ Fast for small datasets

Cons:
❌ Limited customization

B. MySQL Workaround

MySQL lacks FOR XML, but you can use CONCAT:


					SELECT CONCAT(
  '<Employee><ID>', id, '</ID><Name>', name, '</Name></Employee>'
) AS xml_data
FROM Employees;

Method 2: Programmatic Conversion (Python/PHP)

A. Python + ElementTree


					import xml.etree.ElementTree as ET
import sqlite3

# Fetch data from SQLite
conn = sqlite3.connect('company.db')
cursor = conn.cursor()
cursor.execute("SELECT id, name FROM employees")

# Build XML
root = ET.Element("Employees")
for row in cursor:
    emp = ET.SubElement(root, "Employee")
    ET.SubElement(emp, "ID").text = str(row[0])
    ET.SubElement(emp, "Name").text = row[1]

# Save to file
tree = ET.ElementTree(root)
tree.write("employees.xml")

B. PHP + SimpleXML


					<?php
$conn = new mysqli("localhost", "user", "pass", "db");
$result = $conn->query("SELECT id, name FROM employees");

$xml = new SimpleXMLElement('<Employees/>');
while ($row = $result->fetch_assoc()) {
    $employee = $xml->addChild('Employee');
    $employee->addChild('ID', $row['id']);
    $employee->addChild('Name', $row['name']);
}

$xml->asXML('employees.xml');
?>

Comparison Table

Method	Language	Ease	Flexibility
SQL FOR XML	SQL	⭐⭐⭐⭐	⭐⭐
Python (ET)	Python	⭐⭐⭐	⭐⭐⭐⭐
PHP (SimpleXML)	PHP	⭐⭐	⭐⭐⭐

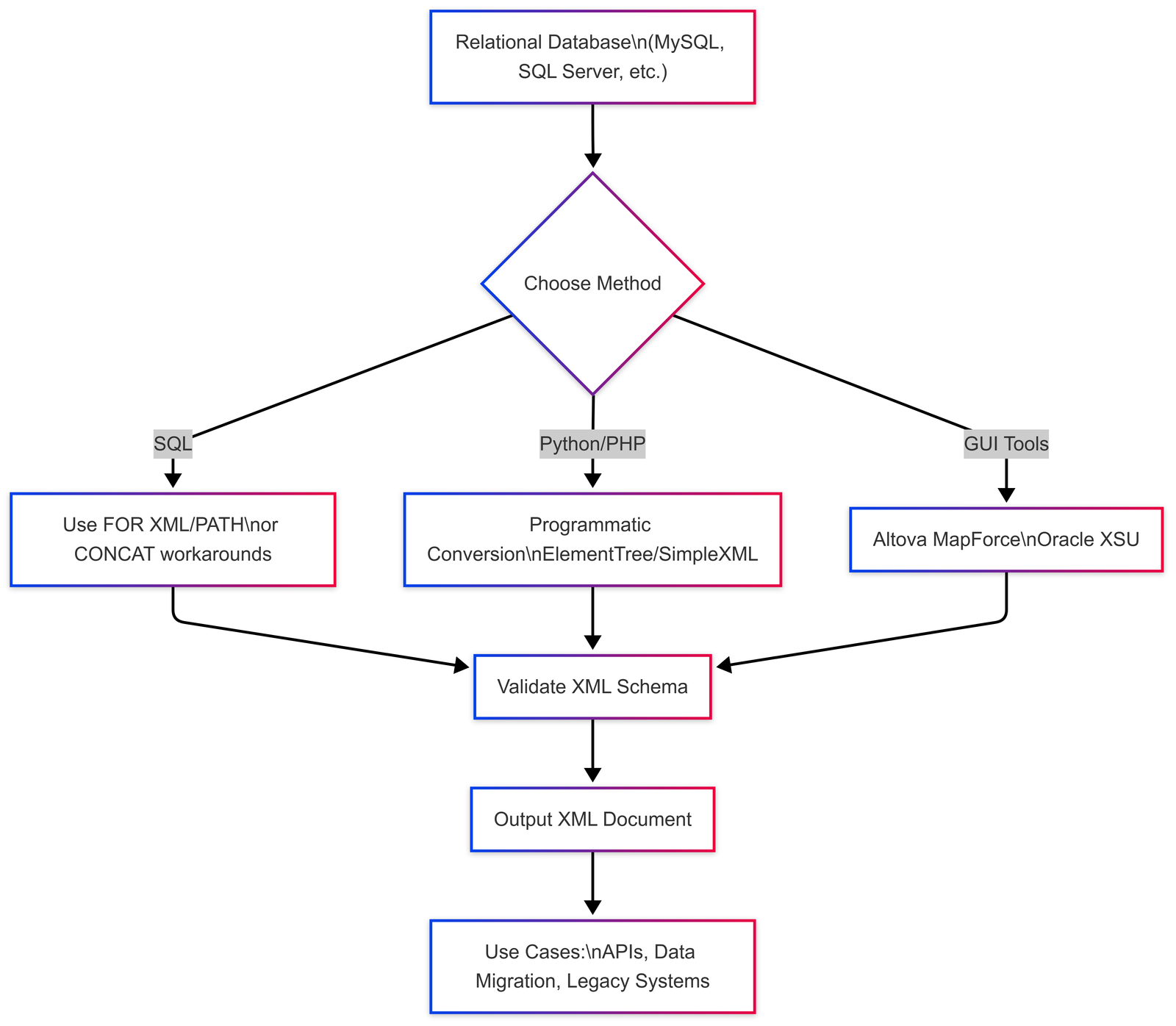

Flowchart: Steps to Convert Relational Data to XML

Advanced Tools & Libraries

Tool	Use Case	Link
Oracle XSU	Large-scale Oracle DB to XML	Docs
Altova MapForce	GUI-based mapping (no code)	Download
IBM DB2 XML Extender	Legacy DB2 systems	IBM Docs

Quick-Reference Guide for Relational Database to XML Conversion)👉

Practical Examples: Relational Data to XML Conversion

Converting relational data to XML is an important task for data interchange. This section demonstrates various methods to achieve this transformation, complete code snippets and generated XML examples are provided along with it so that it makes it easier to understand. Whether you’re using SQL query extensions, middleware tools, or custom scripting, these practical examples will help you understand the process and flow step by step.

1. Using SQL Query Extensions

Relational databases like SQL Server and Oracle provide built-in support for generating XML, from SQL queries.

Using the FOR XML Clause.


					SELECT
    EmployeeID,
    FirstName,
    LastName,
    Department
FROM Employees
FOR XML AUTO, ROOT('Employees');

Generated XML:


					<Employees>
    <Employee EmployeeID="1" FirstName="John" LastName="Doe" Department="IT" />
    <Employee EmployeeID="2" FirstName="Jane" LastName="Smith" Department="HR" />
    <Employee EmployeeID="3" FirstName="Alice" LastName="Johnson" Department="IT" />
</Employees>

2. Custom Scripting Example in Python

Custom scripts can offer complete flexibility for converting relational data to XML. Below is an example using Python:


					import xml.etree.ElementTree as ET

# Data from relational database
data = [
    {"EmployeeID": 1, "FirstName": "John", "LastName": "Doe", "Department": "IT"},
    {"EmployeeID": 2, "FirstName": "Jane", "LastName": "Smith", "Department": "HR"},
    {"EmployeeID": 3, "FirstName": "Alice", "LastName": "Johnson", "Department": "IT"}
]

# Root element
root = ET.Element("Employees")

for emp in data:
    employee = ET.SubElement(root, "Employee")
    for key, value in emp.items():
        ET.SubElement(employee, key).text = str(value)

# Generate XML string
tree = ET.ElementTree(root)
tree.write("employees.xml", encoding="utf-8", xml_declaration=True)
